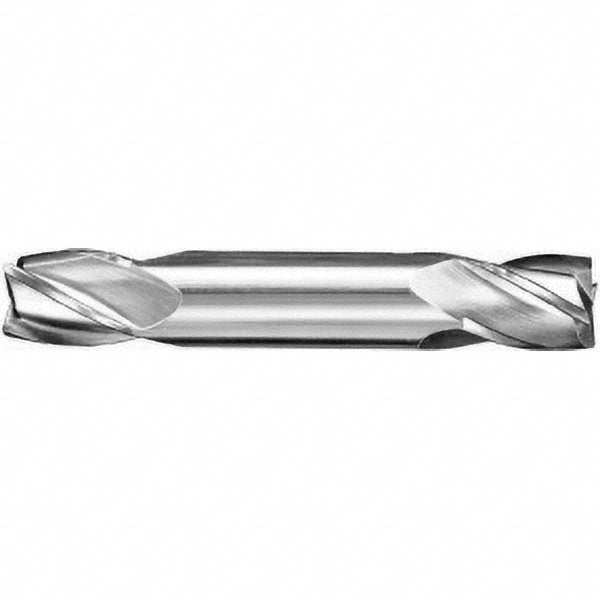

0.3543" 4-Flute Solid Carbide Square End Mill, TiN - SGS 48896

SGS

0.3543" 4-Flute Solid Carbide Square End Mill, TiN - SGS 48896

MFR# 48896Series 14M

$83.70List $105.48 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The SGS 48896 is a 0.3543 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 0.5512 length of cut. Series 14M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.5512
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter0.3543
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)75
Shank diameter0.3543
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
