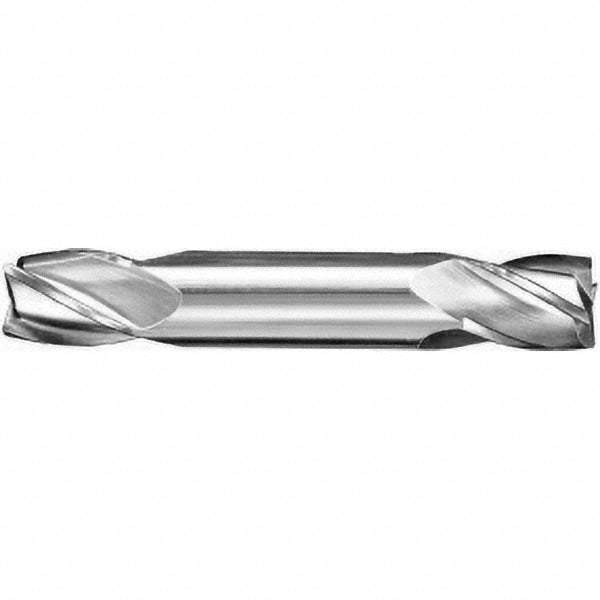

0.0591" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 48906

SGS

0.0591" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 48906

MFR# 48906Series 14M

$26.41List $33.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 48906 is a 0.0591 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 0.1181 length of cut. Series 14M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1181
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter0.0591
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)38
Shank diameter0.1181
Shank diameter tolerance+0.000/-0.006 mm
Variable helixNo
Variable indexNo
