SGS

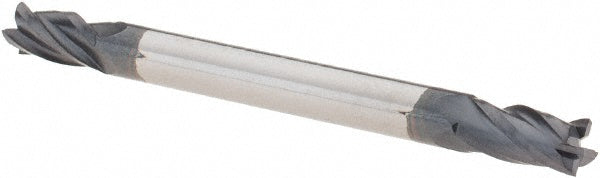

0.1181" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 48930
MFR# 48930Series 14M
$17.41List $22.33
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 48930 is a 0.1181 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.2362 length of cut. Series 14M.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.2362
Length of cut range0.2000 - 0.3000
Length typeStub
Material gradeMicrograin
Mill diameter0.1181
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)38.00
Shank diameter (mm)3.00
Shank diameter tolerance+0.000/-0.006 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
