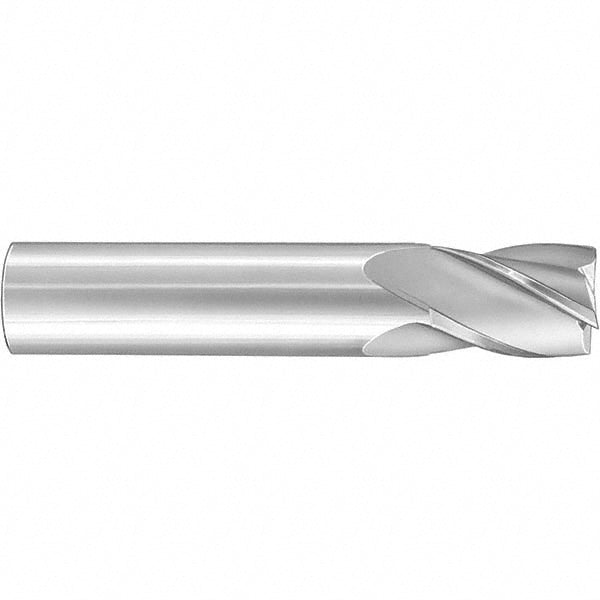

0.0394" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 49157

SGS

0.0394" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 49157

MFR# 49157Series 16M

$16.22List $20.79 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The SGS 49157 is a 0.0394 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 0.0787 length of cut. Series 16M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.0787
Length of cut range0.0000 - 0.1000
Length typeStub
Material gradeMicrograin
Mill diameter0.0394
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)38
Shank diameter0.1181
Shank diameter tolerance+0.000/-0.006 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
