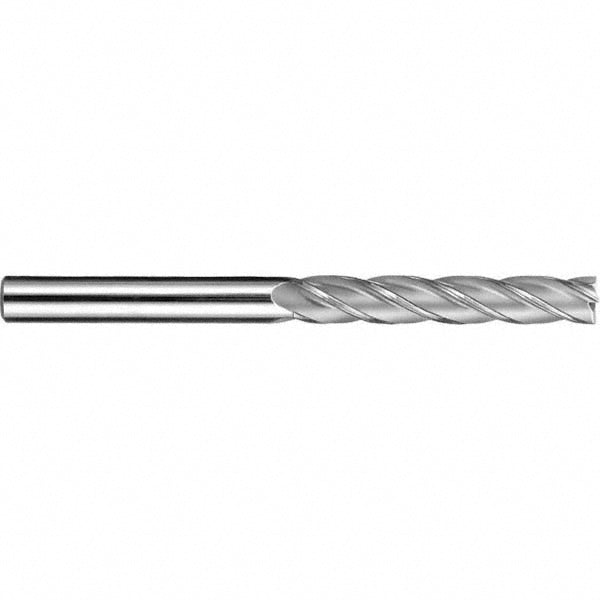

0.2362" 4-Flute Solid Carbide Square End Mill, TiN - SGS 49390

SGS

0.2362" 4-Flute Solid Carbide Square End Mill, TiN - SGS 49390

MFR# 49390Series 1XLM

$41.41List $53.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The SGS 49390 is a 0.2362 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 0.9843 length of cut. Series 1XLM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.9843
Length of cut range0.8000 - 1.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)75
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
