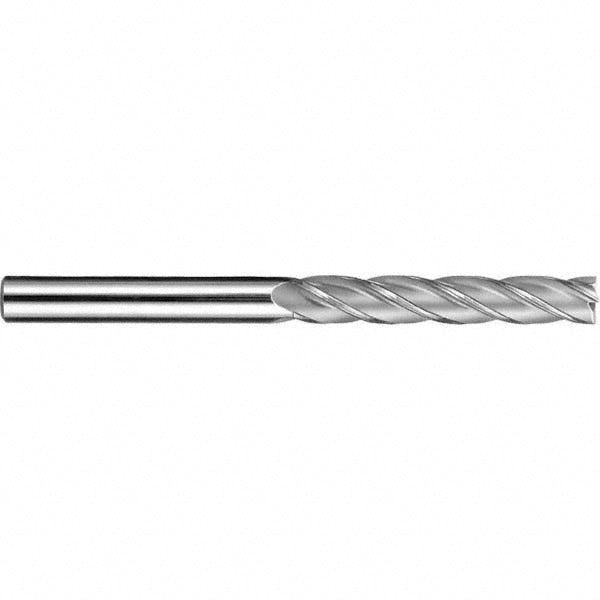

0.4724" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 49420

SGS

0.4724" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 49420

MFR# 49420Series 1XLM

$106.82List $137.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 49420 is a 0.4724 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1.9685 length of cut. Series 1XLM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.9685
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter0.4724
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)100
Shank diameter0.4724
Shank diameter tolerance+0.000/-0.011 mm
Variable helixNo
Variable indexNo
