SGS

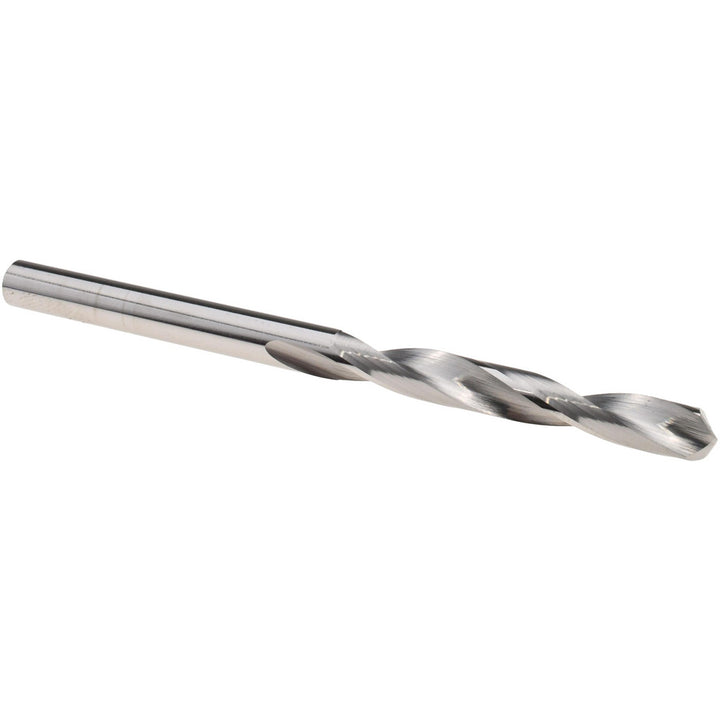

#8 Solid Carbide Drill Bit, 118° point - SGS 51008
MFR# 51008Series 101
$38.15List $48.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 51008 is a #8 Solid Carbide drill bit, 118° point. 1-3/4 flute length, 3 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit materialSolid Carbide
Drill bit size0.199
Drill bit size range0.1500 - 0.2000
Drill bit size wire#8
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-3/4
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.4062
Number of flutes2
Overall length in3
Point typeFaceted
Shank diameter0.1990
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
