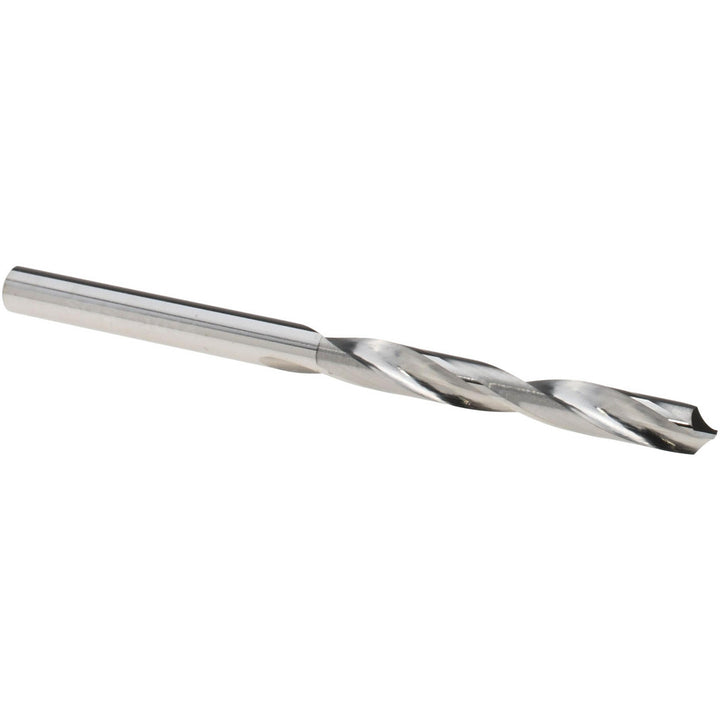

#14 Solid Carbide Drill Bit, 118° point - SGS 51014
MFR# 51014Series 101
$34.69List $44.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 51014 is a #14 Solid Carbide drill bit, 118° point. 1-5/8 flute length, 2-3/4 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit materialSolid Carbide
Drill bit size0.182
Drill bit size range0.1500 - 0.2000
Drill bit size wire#14
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-5/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.2968
Number of flutes2
Overall length in2-3/4
Point typeFaceted
Shank diameter0.1820
Shank length1.1250
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
