SGS

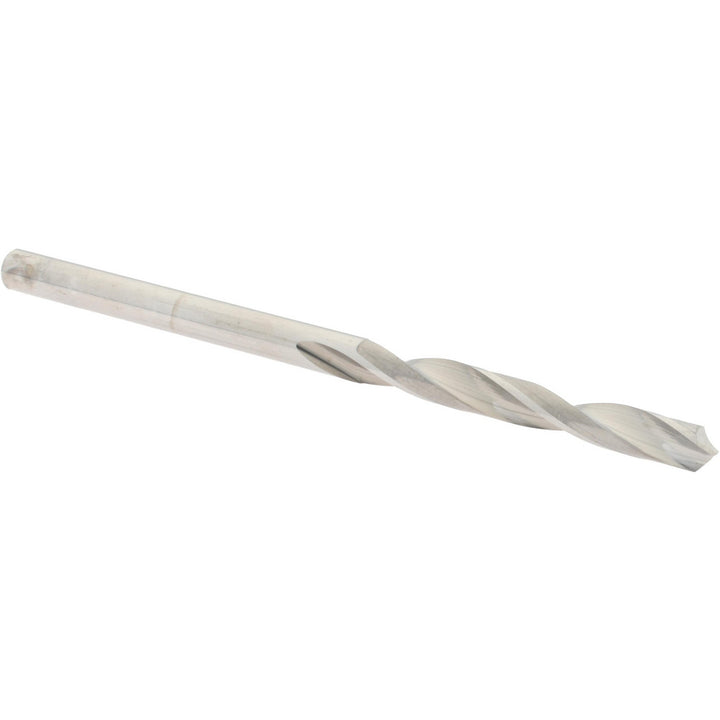

9/64" Solid Carbide Drill Bit, 118° point - SGS 51109
MFR# 51109Series 101
$28.11List $36.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
Description
The SGS 51109 is a 9/64" Solid Carbide drill bit, 118° point. 1-3/8 flute length, 2-1/2 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-3/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.1100
Number of flutes2
Overall length in2-1/2
Point typeFaceted
Shank diameter0.1406
Shank length1.1250
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
