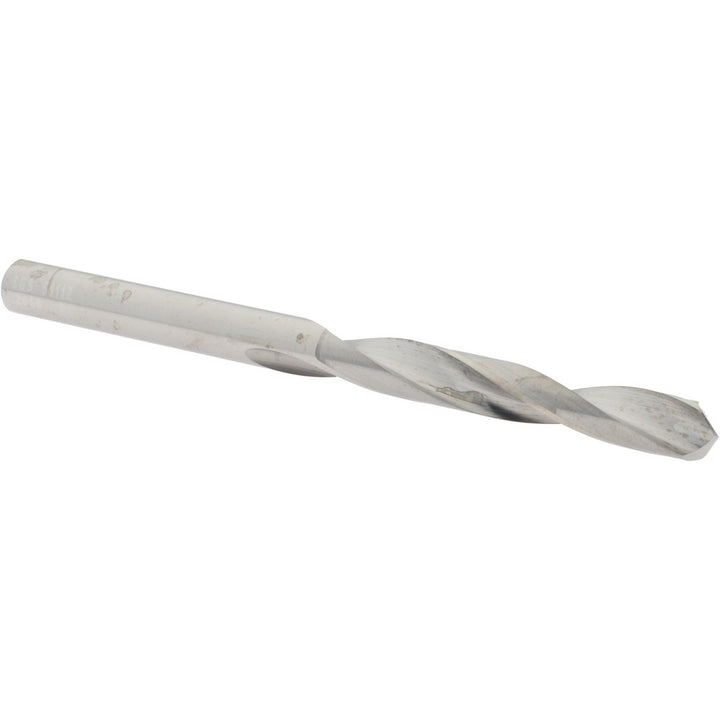

17/64" Solid Carbide Drill Bit, 118° point - SGS 51117
MFR# 51117Series 101
$54.74List $70.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
Description
The SGS 51117 is a 17/64" Solid Carbide drill bit, 118° point. 2-1/8 flute length, 3-1/2 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-1/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.7000
Number of flutes2
Overall length in3-1/2
Point typeFaceted
Shank diameter0.2656
Shank length1.5650
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
