SGS
3/8" Solid Carbide Drill Bit, 118° point - SGS 51124
MFR# 51124Series 101
$104.33List $133.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
Description

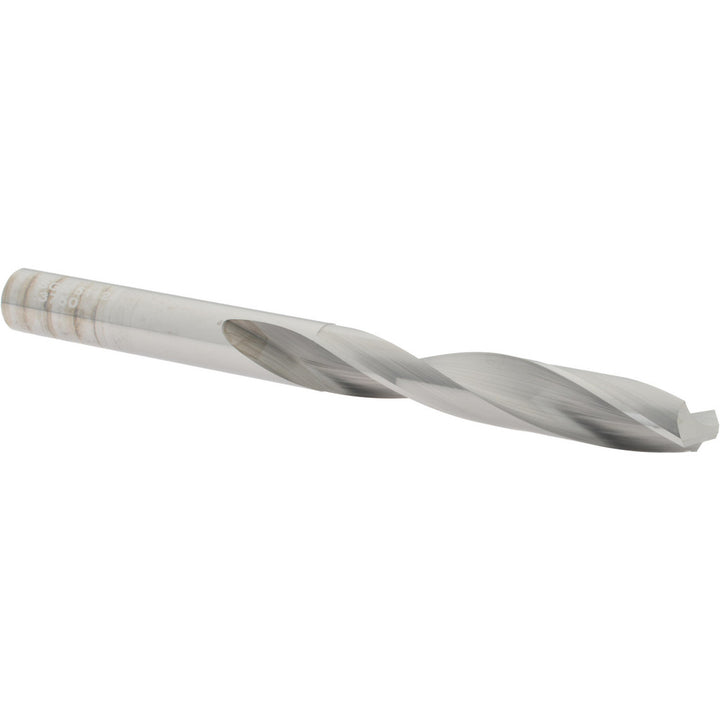

The SGS 51124 is a 3/8" Solid Carbide drill bit, 118° point. 2-3/4 flute length, 4-1/4 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-3/4
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.2000
Number of flutes2
Overall length in4-1/4
Point typeFaceted
Shank diameter0.3750
Shank length1.5000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
