SGS
7/16" Solid Carbide Drill Bit, 118° point - SGS 51128
MFR# 51128Series 101
$149.39List $191.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
Description

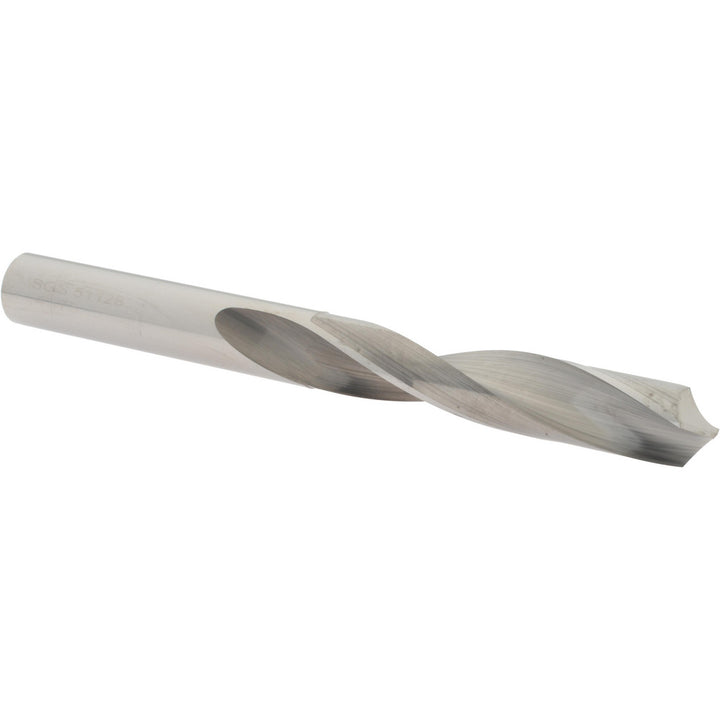

The SGS 51128 is a 7/16" Solid Carbide drill bit, 118° point. 2-7/8 flute length, 4-1/2 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-7/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.2968
Number of flutes2
Overall length in4-1/2
Point typeFaceted
Shank diameter in7/16
Shank length1.6250
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
