SGS

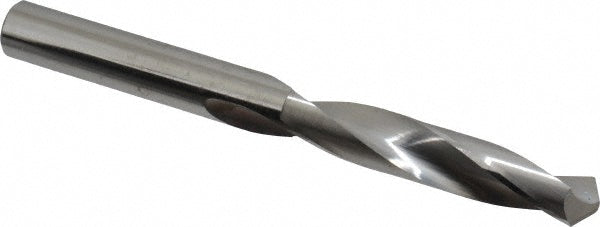

15/32" Solid Carbide Drill Bit, 118° point - SGS 51130
MFR# 51130Series 101
$179.33List $230.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
Description
The SGS 51130 is a 15/32" Solid Carbide drill bit, 118° point. 3 flute length, 4-3/4 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in3
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.4062
Number of flutes2
Overall length in4-3/4
Point typeFaceted
Shank diameter0.4688
Shank length2.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
