SGS

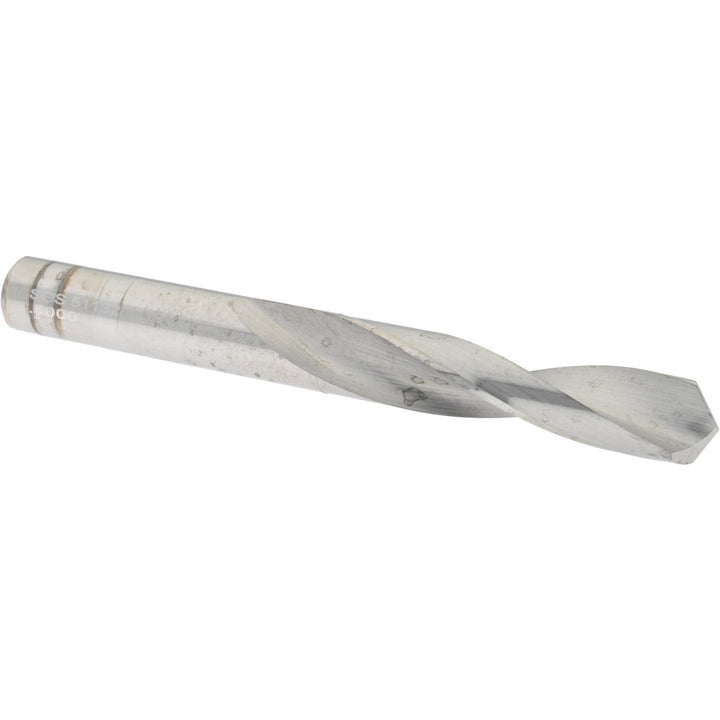

1/2" Solid Carbide Drill Bit, 118° point - SGS 51132
MFR# 51132Series 101
$185.81List $238.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
Description
The SGS 51132 is a 1/2" Solid Carbide drill bit, 118° point. 3 flute length, 4-3/4 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in3
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.4062
Number of flutes2
Overall length in4-3/4
Point typeFaceted
Shank diameter in1/2
Shank length1.7500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
