SGS

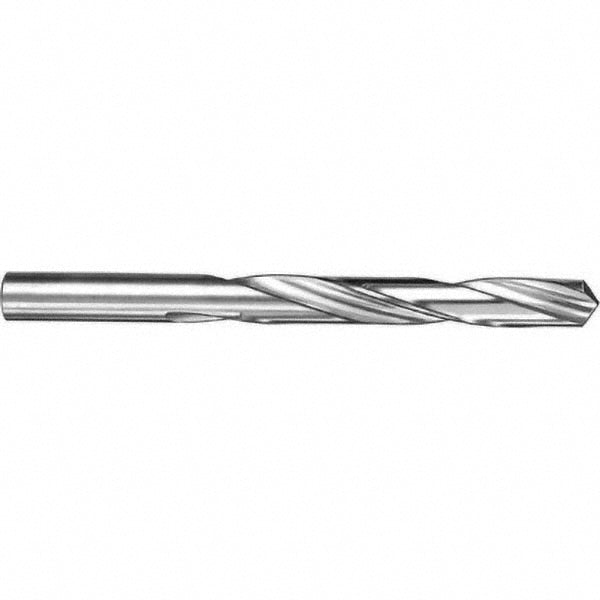

Letter A Solid Carbide Drill Bit, 118° point - SGS 51201
MFR# 51201Series 101
$51.12List $65.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 51201 is a Letter A Solid Carbide drill bit, 118° point. 2 flute length, 3-1/4 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.234
Drill bit size letterA
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-39/64
Number of flutes2
Overall length in3-1/4
Point typeFour Facet
Shank diameter0.2340
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
