SGS
Letter K Solid Carbide Drill Bit, 118° point - SGS 51211
MFR# 51211Series 101
$52.78List $67.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

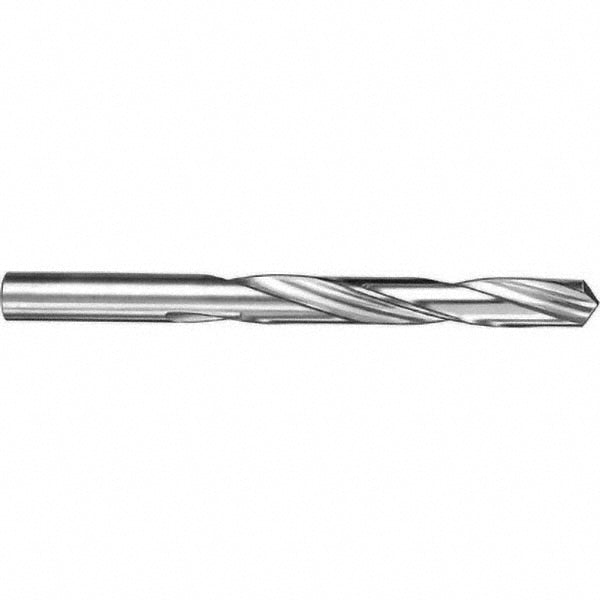

The SGS 51211 is a Letter K Solid Carbide drill bit, 118° point. 2-1/8 flute length, 3-1/2 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.281
Drill bit size letterK
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-1/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-45/64
Number of flutes2
Overall length in3-1/2
Point typeFour Facet
Shank diameter0.2810
Shank length in1-3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
