SGS

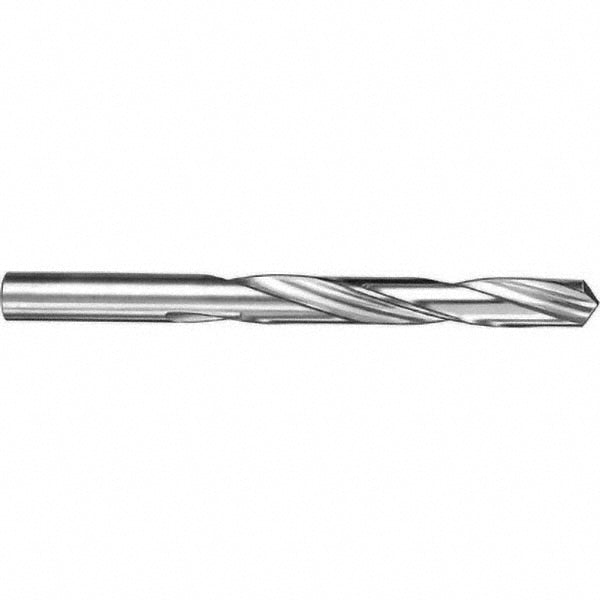

Letter O Solid Carbide Drill Bit, 118° point - SGS 51215
MFR# 51215Series 101
$64.70List $82.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 51215 is a Letter O Solid Carbide drill bit, 118° point. 2-3/8 flute length, 3-3/4 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.316
Drill bit size letterO
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-3/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-29/32
Number of flutes2
Overall length in3-3/4
Point typeFour Facet
Shank diameter0.3160
Shank length in1-3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
