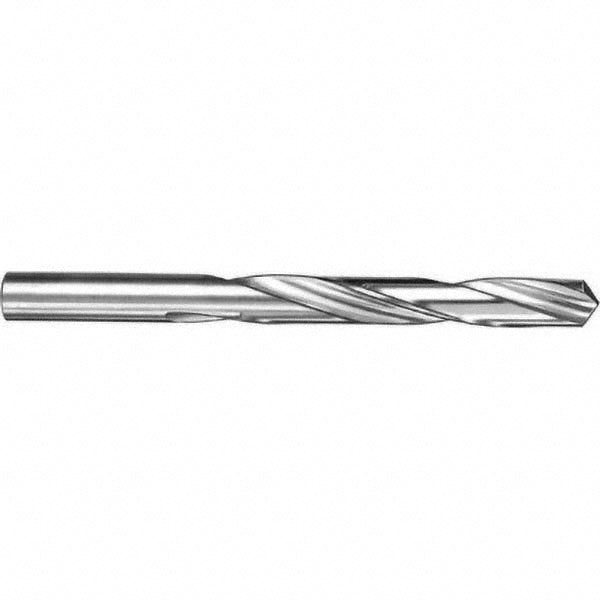

Letter W Solid Carbide Drill Bit, 118° point - SGS 51223
MFR# 51223Series 101
$126.92List $162.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 51223 is a Letter W Solid Carbide drill bit, 118° point. 2-7/8 flute length, 4-1/2 overall length. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.386
Drill bit size letterW
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-7/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in2-19/64
Number of flutes2
Overall length in4-1/2
Point typeFour Facet
Shank diameter0.3860
Shank length in1-5/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
