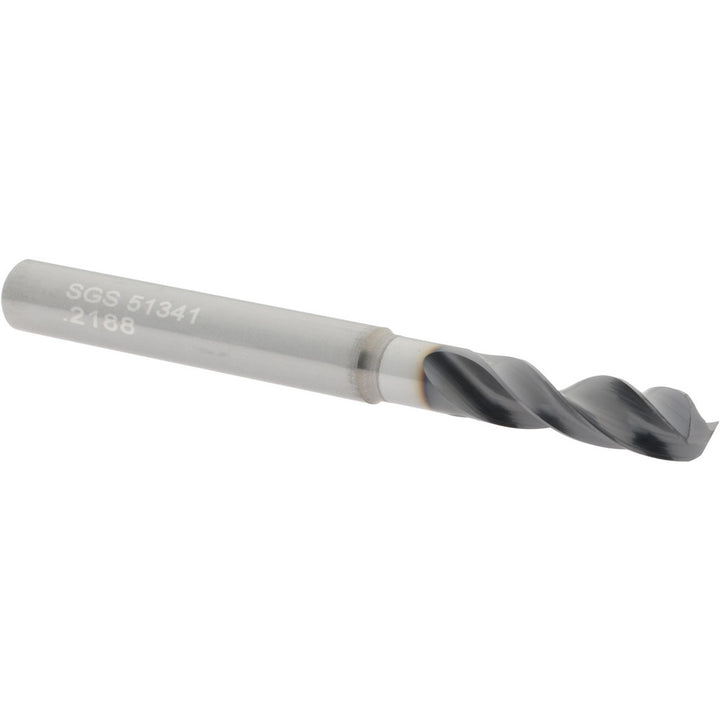

7/32" Solid Carbide Screw Machine Drill Bit, AlTiN, 145° point - SGS 51341

SGS

7/32" Solid Carbide Screw Machine Drill Bit, AlTiN, 145° point - SGS 51341

MFR# 51341Series 135

$122.05List $156.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingAlTiN

Description

The SGS 51341 is a 7/32" Solid Carbide Screw Machine drill bit with a AlTiN finish, 145° point. Suited for alloy, titanium. 1 flute length, 2-5/8 overall length. Series 135.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle145
Flute by diameter ratio3xD
Flute length in1
Flute typeRegular Spiral
Number of flutes2
Number of margins2
Overall length in2-5/8
Point typeNotched
Primary workpiece materialAlloy; Titanium
Shank diameter0.2500
Shank length in1-7/16
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
