SGS

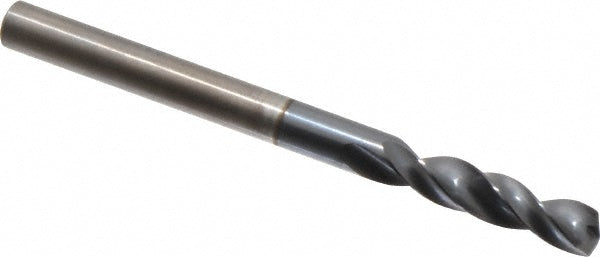

1/4" Solid Carbide Screw Machine Drill Bit, AlTiN, 145° point - SGS 51343
MFR# 51343Series 135
$152.08List $191.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingAlTiN
Description
The SGS 51343 is a 1/4" Solid Carbide Screw Machine drill bit with a AlTiN finish, 145° point. Suited for alloy, titanium. 1-5/16 flute length, 3-1/8 overall length. Series 135.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle145
Flute by diameter ratio3xD
Flute length in1-5/16
Flute typeRegular Spiral
Number of flutes2
Number of margins2
Overall length in3-1/8
Point typeNotched
Primary workpiece materialAlloy; Titanium
Shank diameter0.2500
Shank length in1-7/16
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
