SGS

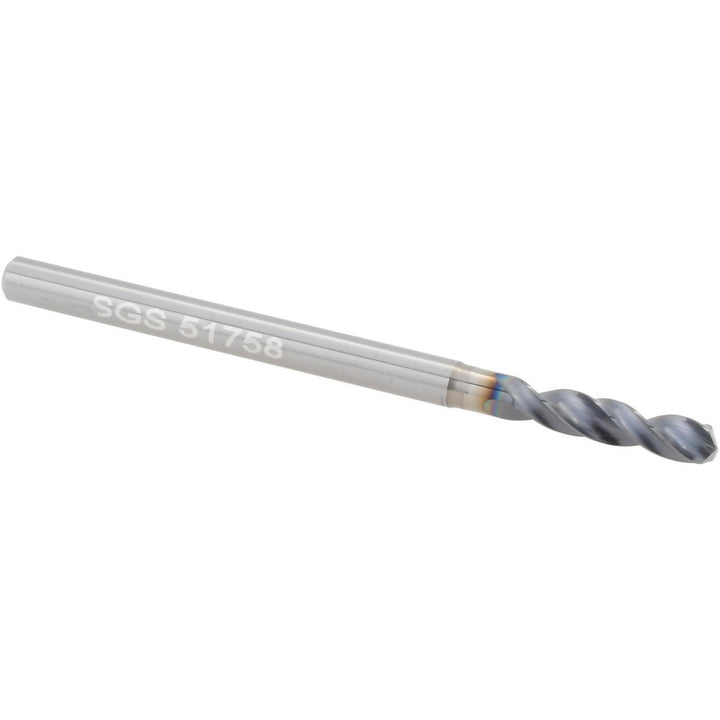

#32 Solid Carbide Screw Machine Drill Bit, AlTiN, 145° point - SGS 51758
MFR# 51758Series 135
$113.01List $144.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The SGS 51758 is a #32 Solid Carbide Screw Machine drill bit with a AlTiN finish, 145° point. Suited for alloy, titanium. 5/8 flute length, 2 overall length. Series 135.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in
Drill bit gradeHigh Performance
Drill bit size0.1160
Drill bit size range0.1000 to 0.1500
Drill bit size wire#32
Drill length typeScrew Machine
Drill point angle145
Flute by diameter ratio3xD
Flute length in5/8
Flute typeRegular Spiral
Maximum drilling depth0.5625
Number of flutes2
Number of margins2
Overall length in2
Point typeNotched
Primary workpiece materialAlloy; Titanium
Shank diameter0.1250
Shank length in1-1/4
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
