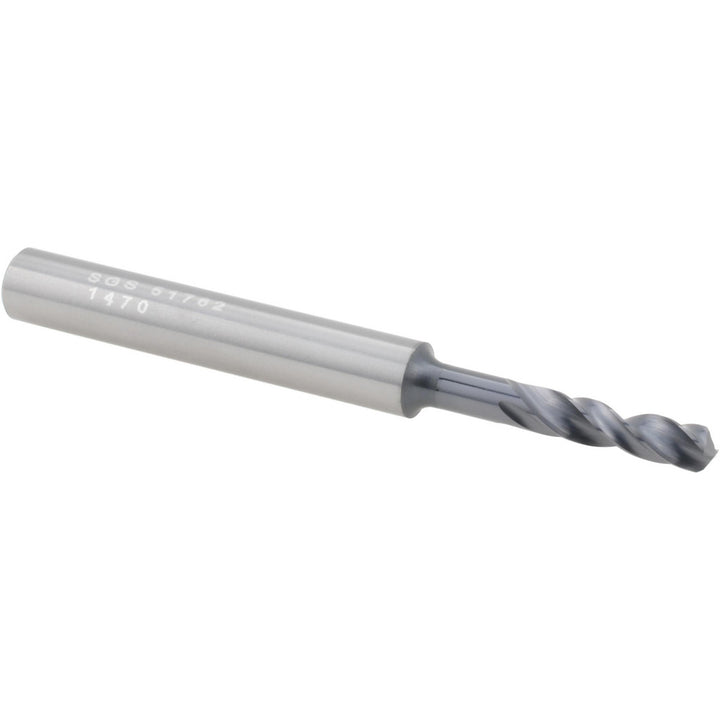

#26 Solid Carbide Drill Bit, AlTiN, 145° point - SGS 51762

SGS

#26 Solid Carbide Drill Bit, AlTiN, 145° point - SGS 51762

MFR# 51762Series 135

$118.53List $152.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlTiN

Description

The SGS 51762 is a #26 Solid Carbide drill bit with a AlTiN finish, 145° point. Suited for steel, stainless steel, high-temp alloy. 3/4 flute length, 2-1/2 overall length. Series 135.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1470
Drill bit size range0.1000 - 0.1500
Drill bit size wire#26
Drill point angle degrees145
Flute by diameter ratio3xD
Flute length in3/4
Flute typeRegular Spiral
Maximum drilling depth in21/32
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in1/4
Shank length in1-7/16
Shank typeStraight
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
