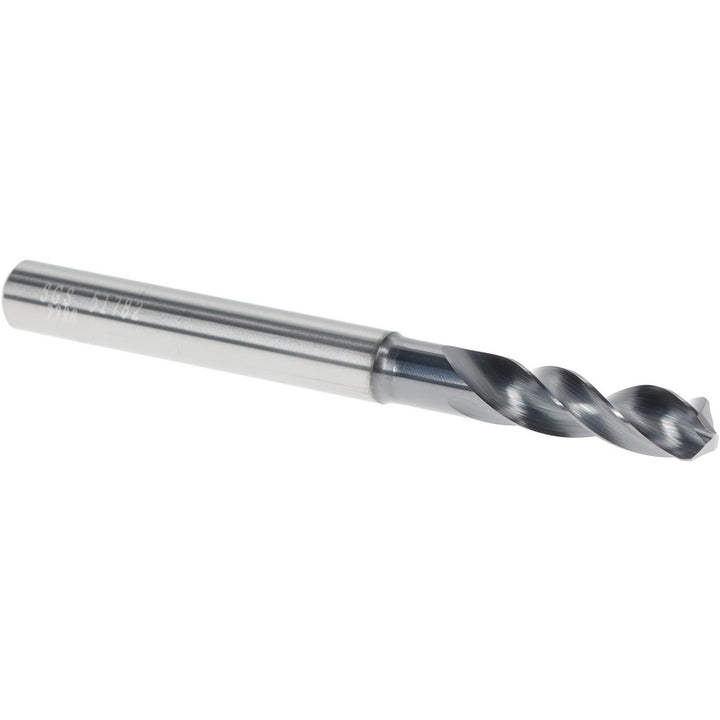

#1 Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-A, 145° point - SGS 51782
MFR# 51782Series 135
$149.14List $187.96
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-A
Description
The SGS 51782 is a #1 Solid Carbide Screw Machine drill bit with a Ti-NAMITE-A finish, 145° point. Suited for alloy, titanium. 1 flute length, 2-5/8 overall length. Series 135.
Specifications
Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0006 in
Drill bit gradeHigh Performance
Drill bit size0.2280
Drill bit size range0.2000 to 0.2500
Drill bit size wire#1
Drill length typeScrew Machine
Drill point angle145
Flute by diameter ratio3xD
Flute length in1
Flute typeSpiral
Maximum drilling depth0.8281
Number of flutes2
Number of margins2
Overall length in2-5/8
Point typeStandard
Primary workpiece materialAlloy; Titanium
Shank diameter0.2500
Shank length in1-7/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
