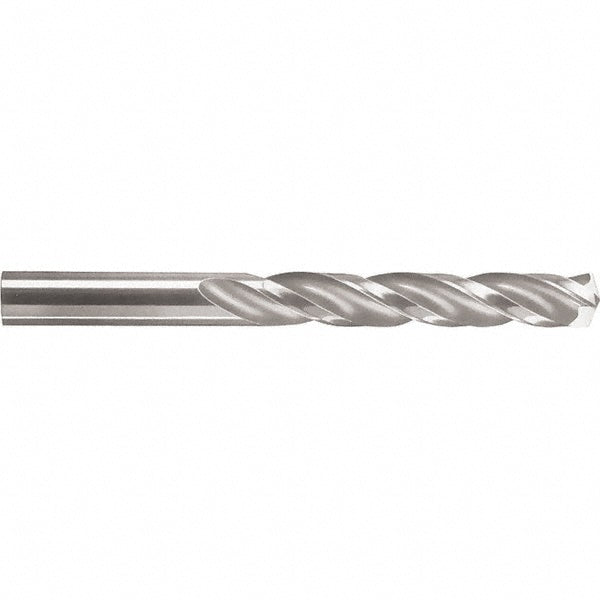

#2 Solid Carbide Drill Bit, 150° point - SGS 53002

SGS

#2 Solid Carbide Drill Bit, 150° point - SGS 53002

MFR# 53002Series 103

$67.72List $86.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The SGS 53002 is a #2 Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 1-3/4 flute length, 3 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.221
Drill bit size range0.2000 - 0.2500
Drill bit size wire#2
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-3/4
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-13/32
Number of flutes3
Overall length in3
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.2210
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
