SGS
#8 Solid Carbide Drill Bit, 150° point - SGS 53008
MFR# 53008Series 103
$53.91List $67.94
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description

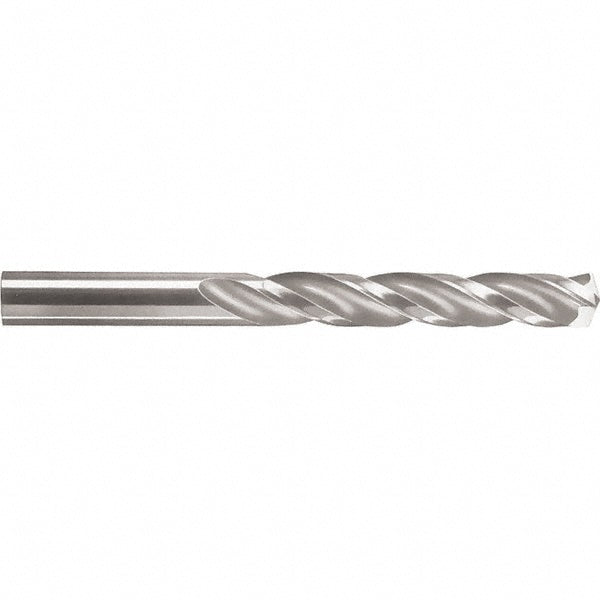

The SGS 53008 is a #8 Solid Carbide drill bit, 150° point. Suited for steel, cast iron, aluminum & non-ferrous. 1-3/4 flute length, 3 overall length. Series 103.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1990
Drill bit size range0.1500 - 0.2000
Drill bit size wire#8
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-3/4
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth in1-13/32
Number of flutes3
Overall length in3
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1990
Shank length in1-1/4
Shank typeStraight
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
