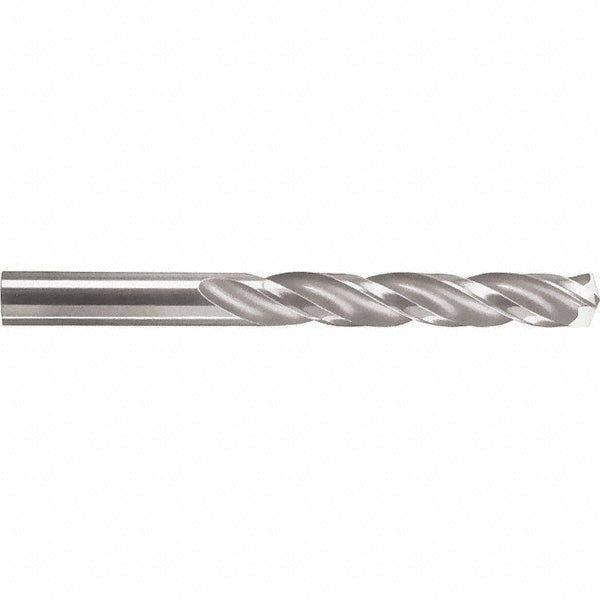

#11 Solid Carbide Drill Bit, 150° point - SGS 53011

SGS

#11 Solid Carbide Drill Bit, 150° point - SGS 53011

MFR# 53011Series 103

$53.31List $68.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The SGS 53011 is a #11 Solid Carbide drill bit, 150° point. Suited for steel, cast iron, aluminum & non-ferrous. 1-5/8 flute length, 2-3/4 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1910
Drill bit size range0.1500 - 0.2000
Drill bit size wire#11
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-5/8
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth in1-19/64
Number of flutes3
Overall length in2-3/4
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1910
Shank length in1-1/8
Shank typeStraight
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
