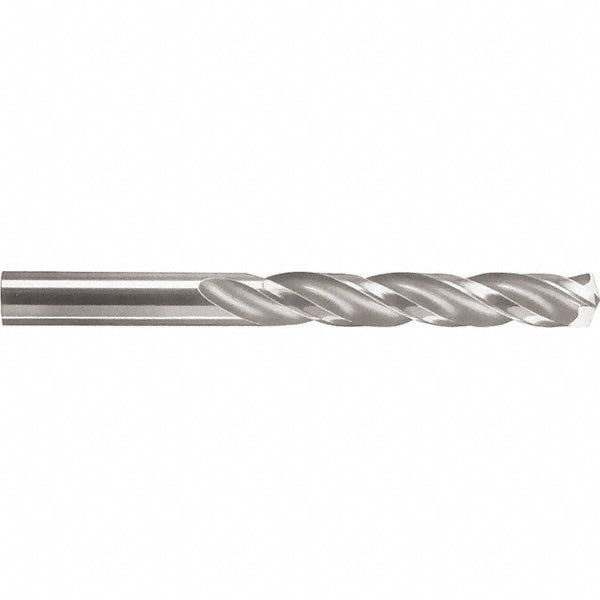

#17 Solid Carbide Drill Bit, 150° point - SGS 53017
MFR# 53017Series 103
$70.35List $88.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The SGS 53017 is a #17 Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 1-5/8 flute length, 2-3/4 overall length. Series 103.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.173
Drill bit size range0.1500 - 0.2000
Drill bit size wire#17
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-5/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-19/64
Number of flutes3
Overall length in2-3/4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.1730
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
