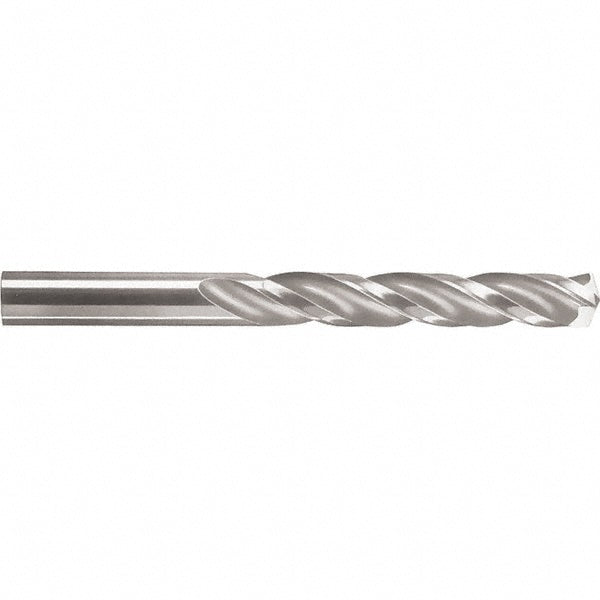

#23 Solid Carbide Drill Bit, 150° point - SGS 53023

SGS

#23 Solid Carbide Drill Bit, 150° point - SGS 53023

MFR# 53023Series 103

$49.35List $63.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The SGS 53023 is a #23 Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 1-3/8 flute length, 2-1/2 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.154
Drill bit size range0.1500 - 0.2000
Drill bit size wire#23
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-3/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-7/64
Number of flutes3
Overall length in2-1/2
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.1540
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
