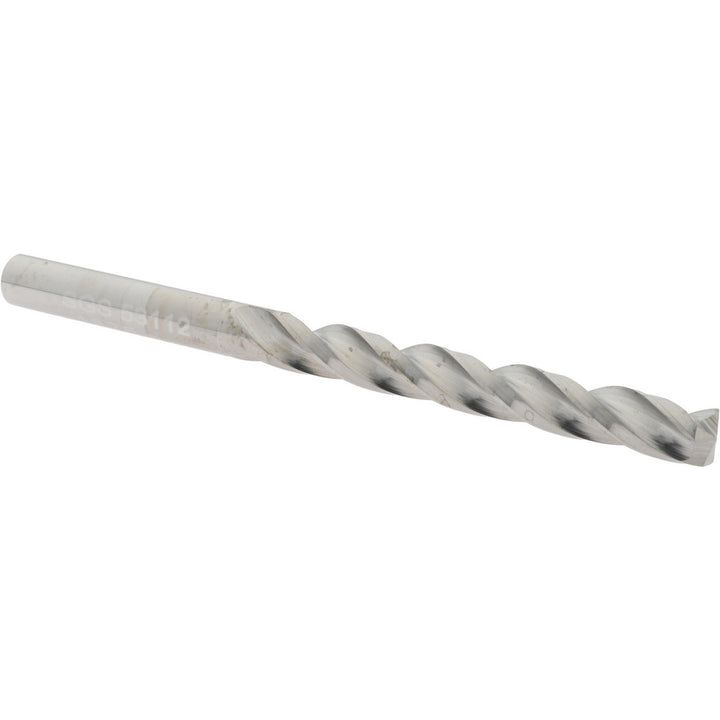

3/16" Solid Carbide Drill Bit, 150° point - SGS 53112

SGS

3/16" Solid Carbide Drill Bit, 150° point - SGS 53112

MFR# 53112Series 103

$62.08List $79.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes3

Description

The SGS 53112 is a 3/16" Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 1-5/8 flute length, 2-3/4 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-5/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.5600
Number of flutes3
Overall length in2-3/4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter in3/16
Shank length1.0950
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
