27/64" Solid Carbide Drill Bit, 150° point - SGS 53127
MFR# 53127Series 103
$192.27List $242.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes3
Description

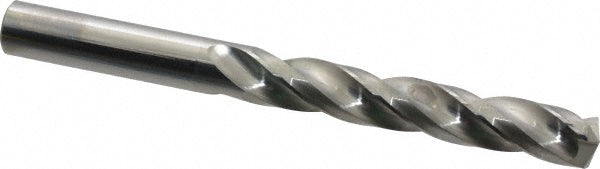

The SGS 53127 is a 27/64" Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 2-7/8 flute length, 4-1/2 overall length. Series 103.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2-7/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.3000
Number of flutes3
Overall length in4-1/2
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.4219
Shank length1.6250
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
