7/16" Solid Carbide Drill Bit, 150° point - SGS 53128

SGS

7/16" Solid Carbide Drill Bit, 150° point - SGS 53128

MFR# 53128Series 103

$170.86List $219.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes3

Description

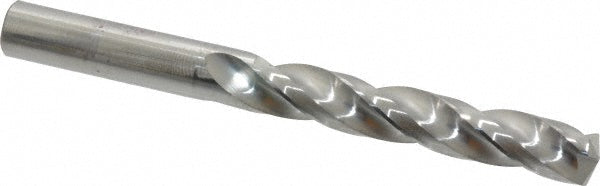

The SGS 53128 is a 7/16" Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 2-7/8 flute length, 4-1/2 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2-7/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.3000
Number of flutes3
Overall length in4-1/2
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.4375
Shank length1.6250
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
