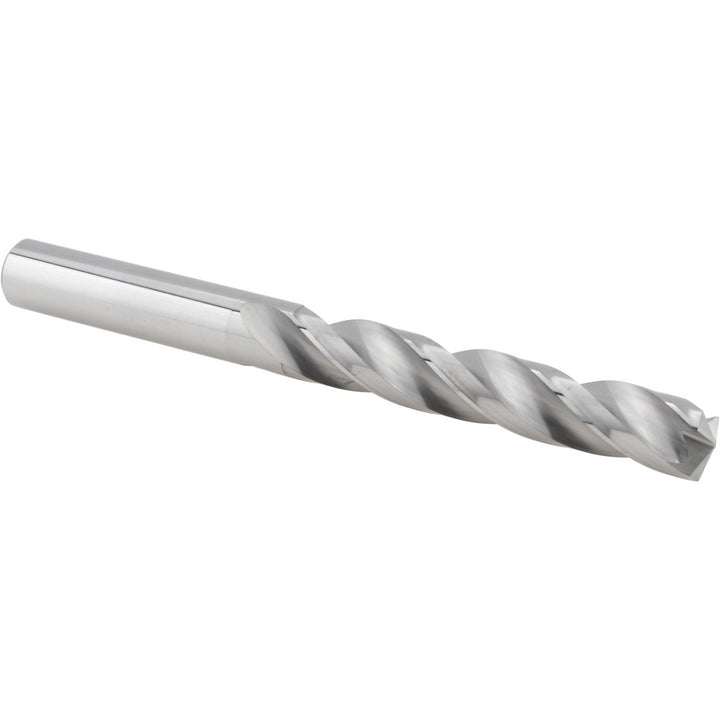

15/32" Solid Carbide Drill Bit, 150° point - SGS 53130

SGS

15/32" Solid Carbide Drill Bit, 150° point - SGS 53130

MFR# 53130Series 103

$216.82List $278.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/32
Flutes3

Description

The SGS 53130 is a 15/32" Solid Carbide drill bit, 150° point. Suited for steel, cast iron, aluminum & non-ferrous. 3 flute length, 4-3/4 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in3
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth2.4100
Number of flutes3
Overall length in4-3/4
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4688
Shank length1.9250
Shank typeStraight
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
