1/2" Solid Carbide Drill Bit, 150° point - SGS 53132

SGS

1/2" Solid Carbide Drill Bit, 150° point - SGS 53132

MFR# SGS-53132Series 103

$177.41List $227.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes3

Description

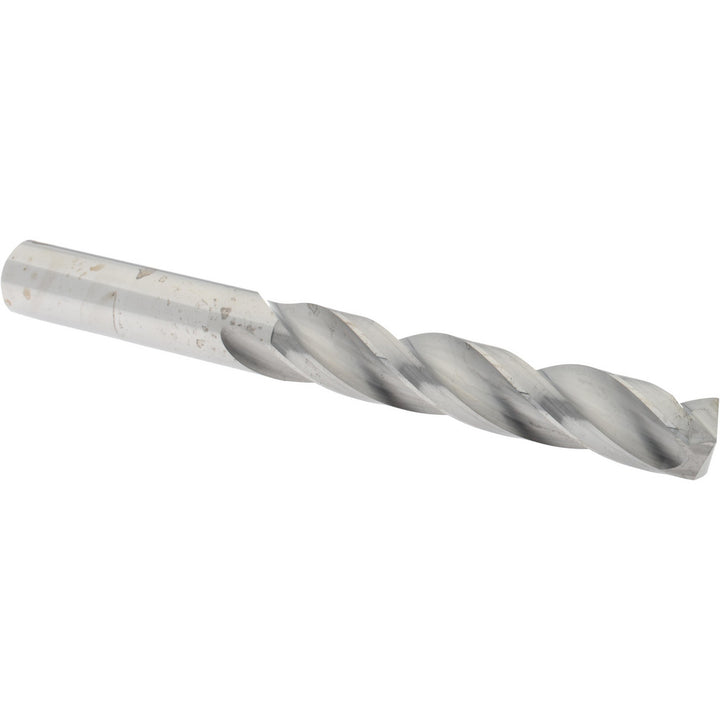

The SGS 53132 is a 1/2" Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 3 flute length, 4-3/4 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in3
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.4100
Number of flutes3
Overall length in4-3/4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank length1.7500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
