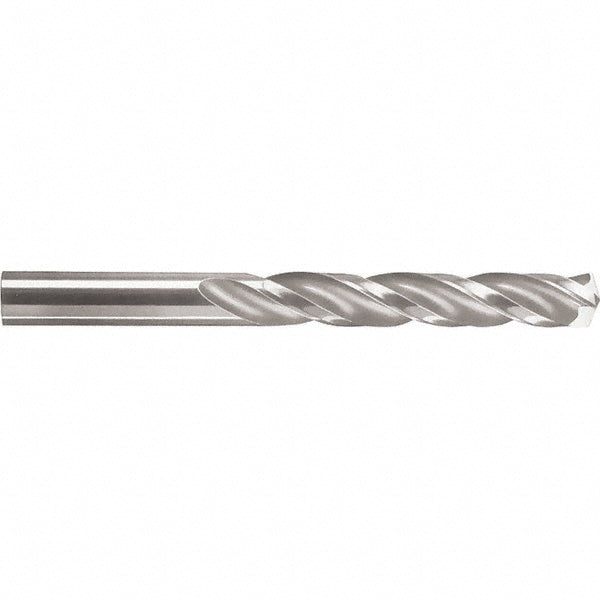

Letter G Solid Carbide Drill Bit, 150° point - SGS 53207

SGS

Letter G Solid Carbide Drill Bit, 150° point - SGS 53207

MFR# 53207Series 103

$63.21List $81.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The SGS 53207 is a Letter G Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 2-1/8 flute length, 3-1/2 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.261
Drill bit size letterG
Drill bit size range0.2500 - 0.3000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2-1/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-45/64
Number of flutes3
Overall length in3-1/2
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.2610
Shank length in1-3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
