SGS

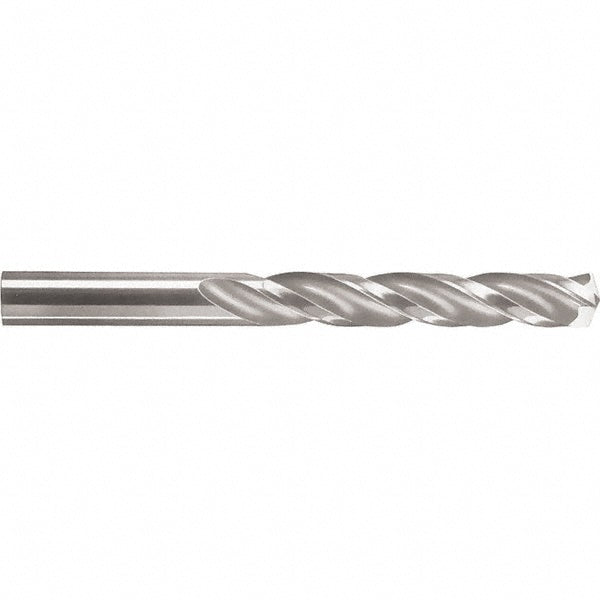

Letter S Solid Carbide Drill Bit, 150° point - SGS 53219
MFR# 53219Series 103
$151.04List $190.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The SGS 53219 is a Letter S Solid Carbide drill bit, 150° point. Suited for steel, cast iron, aluminum & non-ferrous. 2-1/2 flute length, 4 overall length. Series 103.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.3480
Drill bit size letterS
Drill bit size range0.3000 - 0.3500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2-1/2
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth in2
Number of flutes3
Overall length in4
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3480
Shank length in1-1/2
Shank typeStraight
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
