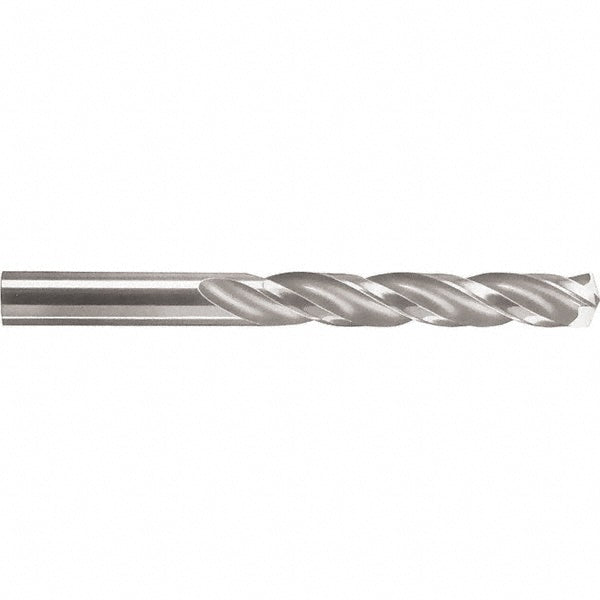

Letter W Solid Carbide Drill Bit, 150° point - SGS 53223

SGS

Letter W Solid Carbide Drill Bit, 150° point - SGS 53223

MFR# 53223Series 103

$147.11List $188.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The SGS 53223 is a Letter W Solid Carbide drill bit, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 2-7/8 flute length, 4-1/2 overall length. Series 103.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.386
Drill bit size letterW
Drill bit size range0.3500 - 0.4000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2-7/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in2-19/64
Number of flutes3
Overall length in4-1/2
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.3860
Shank length in1-5/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
