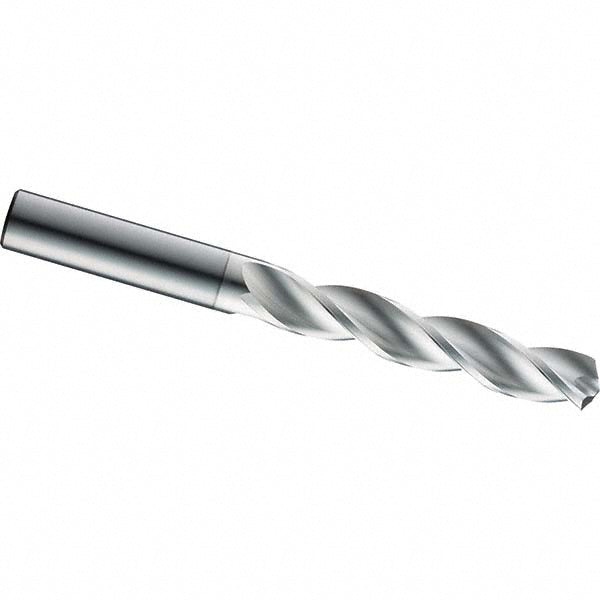

Letter Q Solid Carbide Screw Machine Drill Bit, 124° point - SGS 54617
MFR# 54617Series 131N
$130.30List $167.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The SGS 54617 is a Letter Q Solid Carbide Screw Machine drill bit, 124° point. Suited for aluminum, non-ferrous metals. Series 131N.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00024 to +0.00083 in
Drill bit gradeHigh Performance
Drill bit size0.3320
Drill bit size letterQ
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle124
Flute by diameter ratio3xD
Flute length1.8504
Flute typeHelical; Parabolic
Material gradeMicrograin
Maximum drilling depth1.8500
Number of flutes3
Number of margins3
Overall length3.5040
Point typeSpecial
Primary workpiece materialAluminum; Non-Ferrous Metals
Shank length in1.5750
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
