SGS

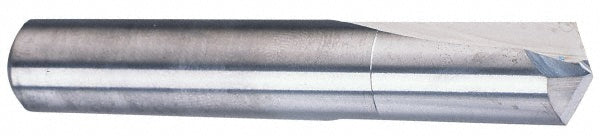

#2 Carbide Drill Bit, 140° point - SGS 56002
MFR# 56002Series 106
$45.64List $58.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 56002 is a #2 Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 1-5/16 flute length, 2-7/16 overall length. Series 106.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.2210
Drill bit size wire#2
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in1-5/16
Material gradeMicrograin
Maximum drilling depth1.0470
Number of flutes2
Overall length in2-7/16
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.2210
Shank length1.2030
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
