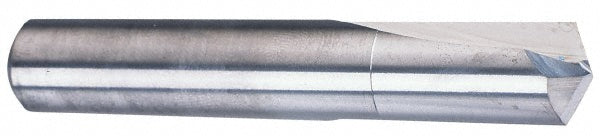

#8 Carbide Drill Bit, 140° point - SGS 56008

SGS

#8 Carbide Drill Bit, 140° point - SGS 56008

MFR# 56008Series 106

$38.96List $49.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The SGS 56008 is a #8 Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 1-3/16 flute length, 2-1/4 overall length. Series 106.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.1990
Drill bit size wire#8
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in1-3/16
Material gradeMicrograin
Maximum drilling depth0.9530
Number of flutes2
Overall length in2-1/4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.1990
Shank length1.1170
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
