#11 Carbide Drill Bit, 140° point - SGS 56011
MFR# 56011Series 106
$37.44List $48.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

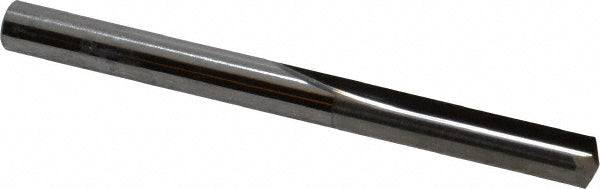

The SGS 56011 is a #11 Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 1-1/8 flute length, 2-3/16 overall length. Series 106.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.1910
Drill bit size wire#11
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in1-1/8
Material gradeMicrograin
Maximum drilling depth0.9060
Number of flutes2
Overall length in2-3/16
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.1910
Shank length1.1300
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
