SGS

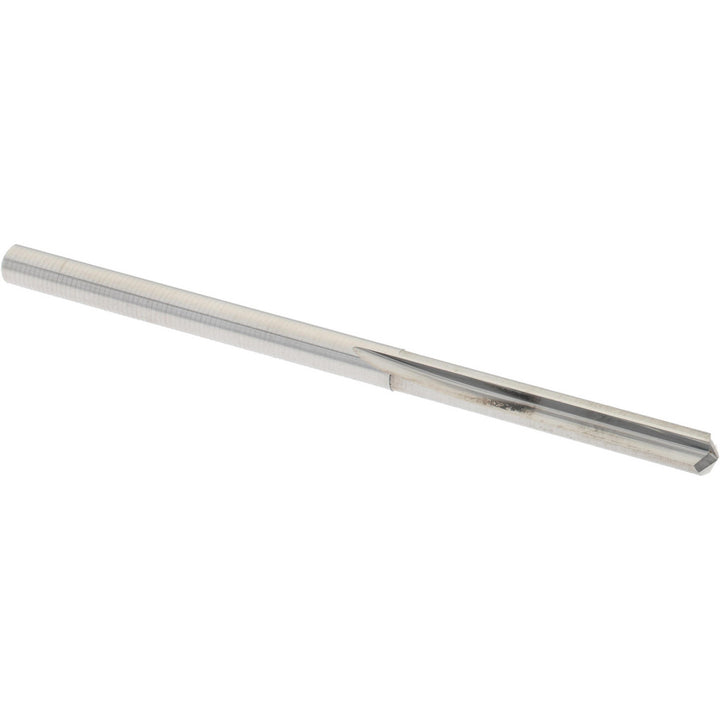

#35 Carbide Drill Bit, 140° point - SGS 56035
MFR# 56035Series 106
$27.81List $35.05
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 56035 is a #35 Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 7/8 flute length, 1-7/8 overall length. Series 106.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.1100
Drill bit size wire#35
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in7/8
Material gradeMicrograin
Maximum drilling depth0.7030
Number of flutes2
Overall length in1-7/8
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.1100
Shank length1.0220
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
