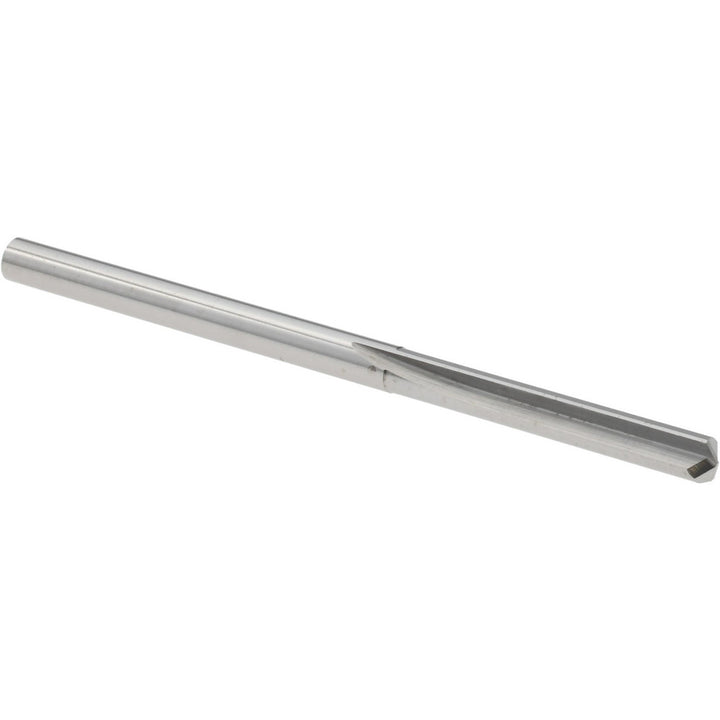

7/64" Carbide Drill Bit, 140° point - SGS 56107

SGS

7/64" Carbide Drill Bit, 140° point - SGS 56107

MFR# 56107Series 106

$22.42List $28.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/64
Flutes2

Description

The SGS 56107 is a 7/64" Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 13/16 flute length, 1-13/16 overall length. Series 106.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in7/64
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in13/16
Material gradeMicrograin
Maximum drilling depth0.6560
Number of flutes2
Overall length in1-13/16
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.1094
Shank length1.0510
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
