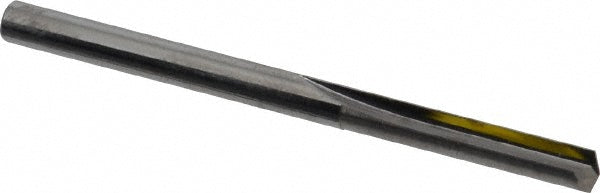

9/64" Carbide Drill Bit, 140° point - SGS 56109

SGS

9/64" Carbide Drill Bit, 140° point - SGS 56109

MFR# 56109Series 106

$27.43List $35.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2

Description

The SGS 56109 is a 9/64" Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 15/16 flute length, 1-15/16 overall length. Series 106.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in9/64
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in15/16
Material gradeMicrograin
Maximum drilling depth in3/4
Number of flutes2
Overall length in1-15/16
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.1406
Shank length1.0590
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
