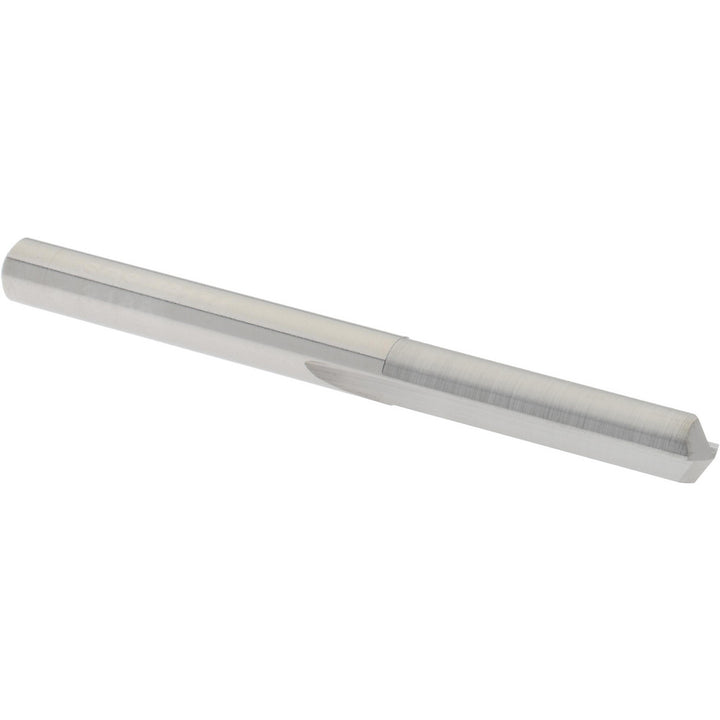

7/32" Carbide Drill Bit, 140° point - SGS 56114

SGS

7/32" Carbide Drill Bit, 140° point - SGS 56114

MFR# 56114Series 106

$40.41List $51.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2

Description

The SGS 56114 is a 7/32" Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 1-1/4 flute length, 2-3/8 overall length. Series 106.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in7/32
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in1-1/4
Material gradeMicrograin
Maximum drilling depth in1
Number of flutes2
Overall length in2-3/8
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.2188
Shank length1.2000
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
