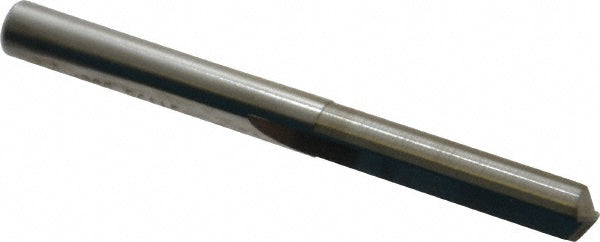

15/64" Carbide Drill Bit, 140° point - SGS 56115

SGS

15/64" Carbide Drill Bit, 140° point - SGS 56115

MFR# 56115Series 106

$50.61List $64.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
Flutes2

Description

The SGS 56115 is a 15/64" Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 1-5/16 flute length, 2-7/16 overall length. Series 106.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in15/64
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in1-5/16
Material gradeMicrograin
Maximum drilling depth1.0470
Number of flutes2
Overall length in2-7/16
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter0.2344
Shank length1.2030
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
