1/4" Carbide Drill Bit, 140° point - SGS 56116

SGS

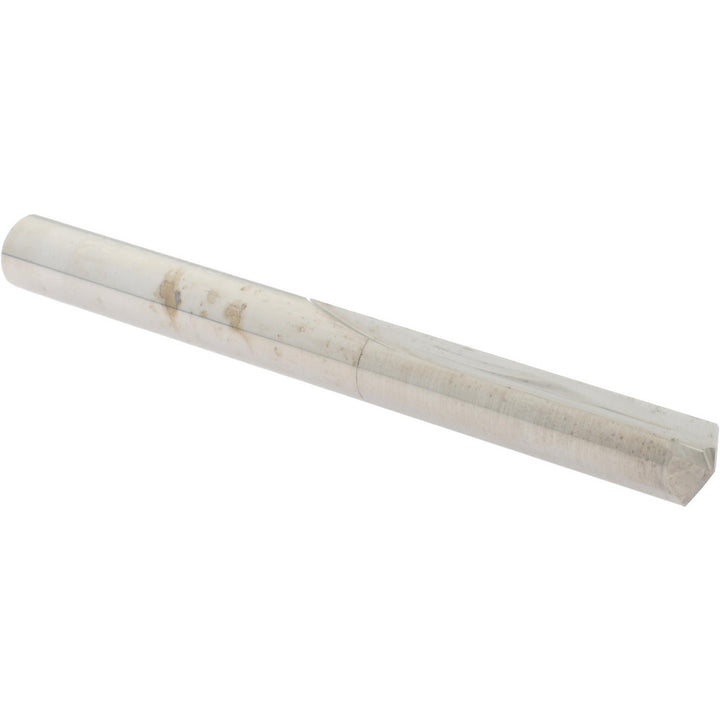

1/4" Carbide Drill Bit, 140° point - SGS 56116

MFR# 56116Series 106

$45.86List $58.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2

Description

The SGS 56116 is a 1/4" Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 1-3/8 flute length, 2-1/2 overall length. Series 106.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in1/4
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in1-3/8
Material gradeMicrograin
Maximum drilling depth1.1090
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter in1/4
Shank length1.2100
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
