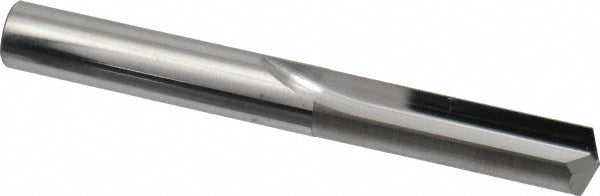

3/8" Carbide Drill Bit, 140° point - SGS 56124

SGS

3/8" Carbide Drill Bit, 140° point - SGS 56124

MFR# 56124Series 106

$89.02List $114.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2

Description

The SGS 56124 is a 3/8" Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 1-13/16 flute length, 3-1/8 overall length. Series 106.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in3/8
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length in1-13/16
Material gradeMicrograin
Maximum drilling depth1.4530
Number of flutes2
Overall length in3-1/8
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter in3/8
Shank length1.4980
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
