SGS
1/2" Carbide Drill Bit, 140° point - SGS 56132
MFR# 56132Series 106
$139.65List $179.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
Description

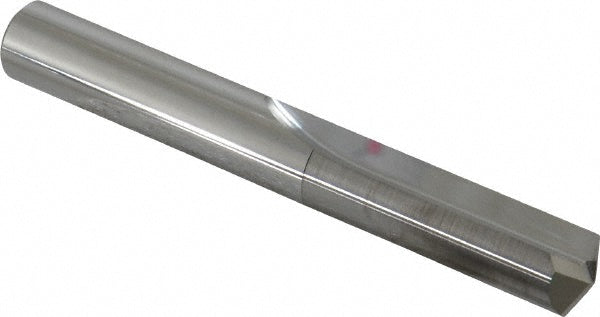

The SGS 56132 is a 1/2" Carbide drill bit, 140° point. Suited for cast iron, hardened steel, steel. 3-3/4 overall length. Series 106.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in1/2
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length2.2500
Material gradeMicrograin
Number of flutes2
Overall length in3-3/4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter in1/2
Shank length1.7050
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
