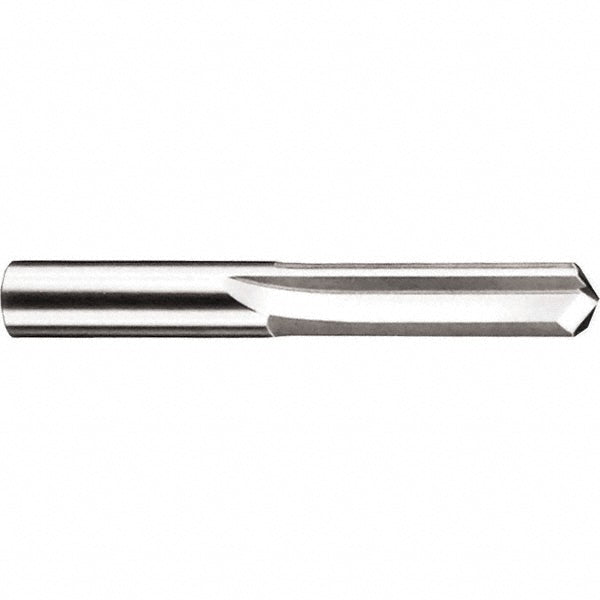

1/8" Carbide Drill Bit, Coated, 140° point - SGS 56140

SGS

1/8" Carbide Drill Bit, Coated, 140° point - SGS 56140

MFR# 56140Series 106

$23.85List $30.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2
CoatingCoated

Description

The SGS 56140 is a 1/8" Carbide drill bit with a Coated finish, 140° point. Suited for cast iron, hardened steel, steel. 1-7/8 overall length. Series 106.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit size in1/8
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length0.8750
Material gradeMicrograin
Maximum drilling depth in45/64
Number of flutes2
Overall length in1-7/8
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Shank diameter in1/8
Shank length in1
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
