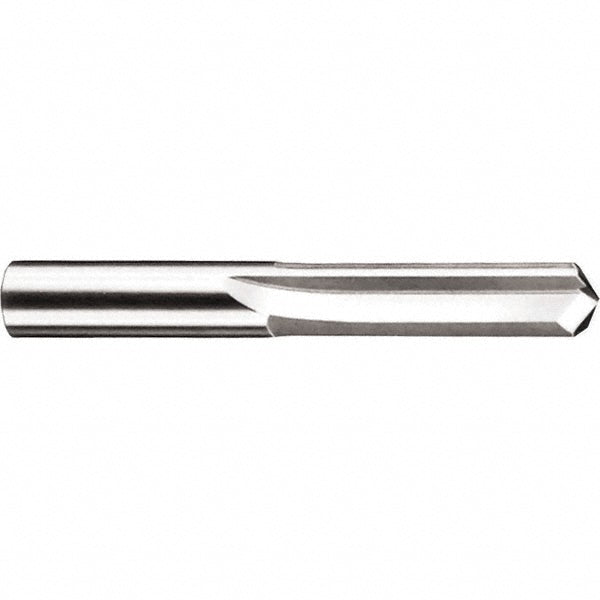

5/32" Carbide Drill Bit, Coated, 140° point - SGS 56142
MFR# 56142Series 106
$33.21List $42.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
CoatingCoated
Description
The SGS 56142 is a 5/32" Carbide drill bit with a Coated finish, 140° point. Suited for cast iron, hardened steel, steel. Series 106.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit size in5/32
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length1.0000
Material gradeMicrograin
Maximum drilling depth in51/64
Number of flutes2
Overall length2.0630
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Shank diameter0.1560
Shank length in1-1/16
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
